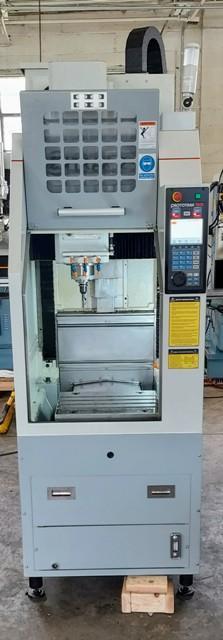

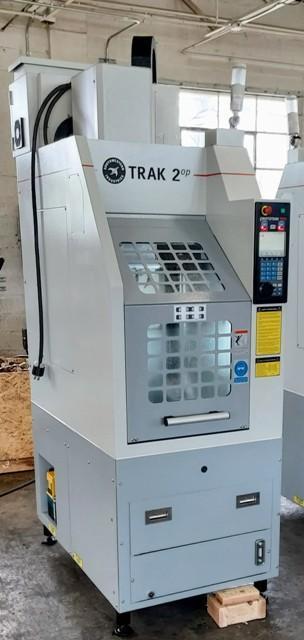

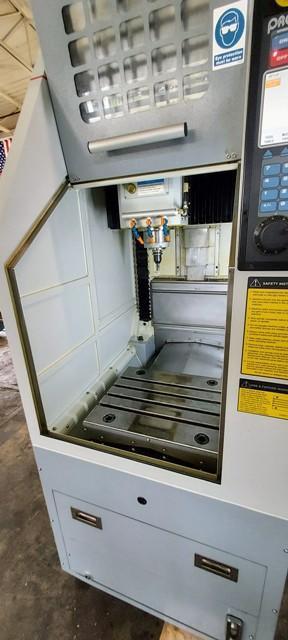

Southwestern Industries Trak 2OP M-11 (2019)

Model
2OP M-11

Year
2019

Stock #
104265

Condition
Used

Specifications

Equipped With

https://youtu.be/ZuxFG-pZ6uY


Machine Specifications

Width of machine 30.5”
Depth of machine 52”
Height of mill with head all the way up 101”
Minimum height to fit mill through doorway 92”
(Z cable carrier collapsed, resistor cover and resistors removed)

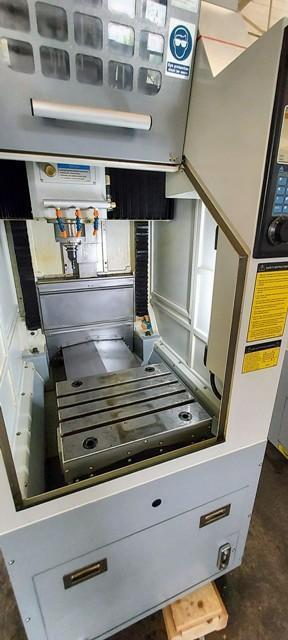

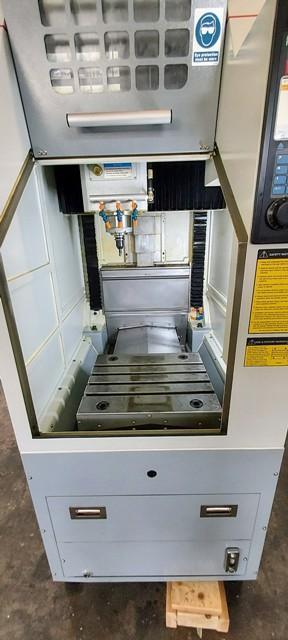

Table Dimensions Table size 18” x 15”
Number of tee slots and pitch 4 @ 63 mm
Tee slot width 0.630” or 16 mm
Table maximum load 500 lbs.
Ball Lock ® hold down force 2250 lbs @ 35 in/lbs of torque
Machine Weight ~2825 lbs
Machine Shipping Weight ~3175 lbs
Travel X-axis 14”
Y-axis 18” (12” of machining travel)
Z-axis 17”
Maximum distance from spindle nose table surface 20.25”
Minimum distance from spindle nose table surface 2.75”
Maximum swing clearance from spindle center to column 14”
Maximum Rapid speed X, Y & Z-axis, inches per minute 600
Spindle Tool holder type BT30
Spindle nose diameter 2.2” or 56 mm
Maximum RPM Horsepower 6000 3 HP
Automatic Tool Changer
Tool Capacity 8
Maximum tool diameter 2”
Air Requirements
Pressure 90 psi
Quality CFM SCFM Air dried/filtered water separator upstream of the machine 2.5 at 90 psi 18
Auto Lube Pump
Fluorescent Worklamp
Coolant Pump
Limit Switches
Electronic Handwheel
4 Ball Lock Receivers in table
Main Electrical Power Cord with Plug

Equipped With
 ProtoTRAK TMX

*** PALLET JACK NOT INCLUDED
