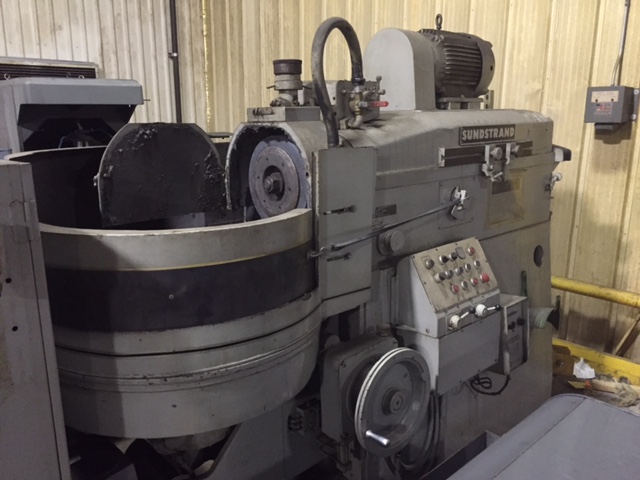

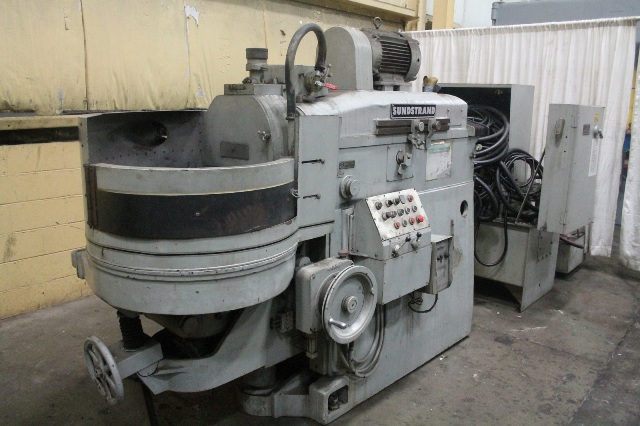

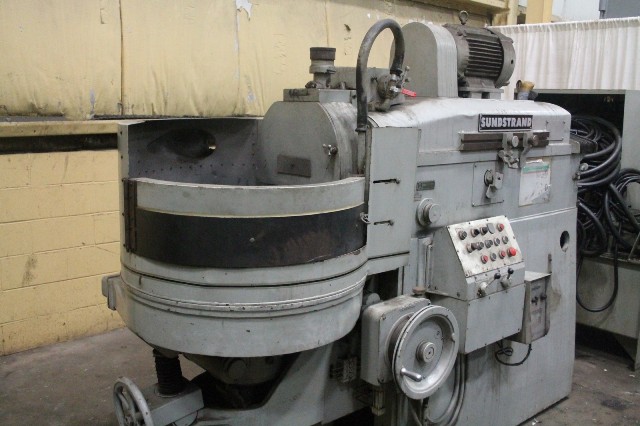

25" SUNSTRAND HORIZONTAL SPINDLE ROTARY SURFACE GRINDER

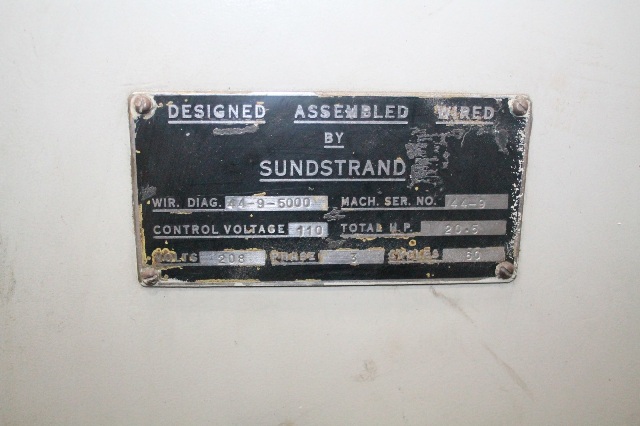

SERIAL
............................... 44-9

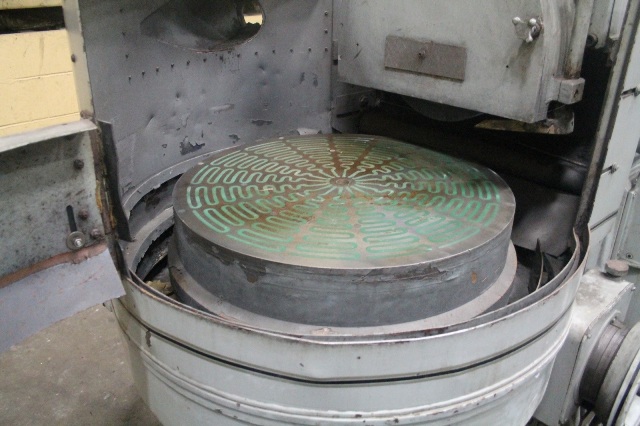

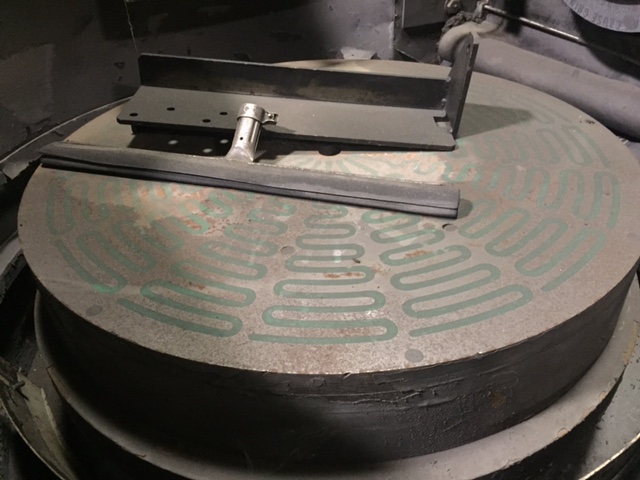

CHUCK DIAMETER ....................... 25-1/2"
WHEEL ELEVATION ...................... HAND OR POWER
MAXIMUM SWING INSIDE COOLANT GUARD ... 28"

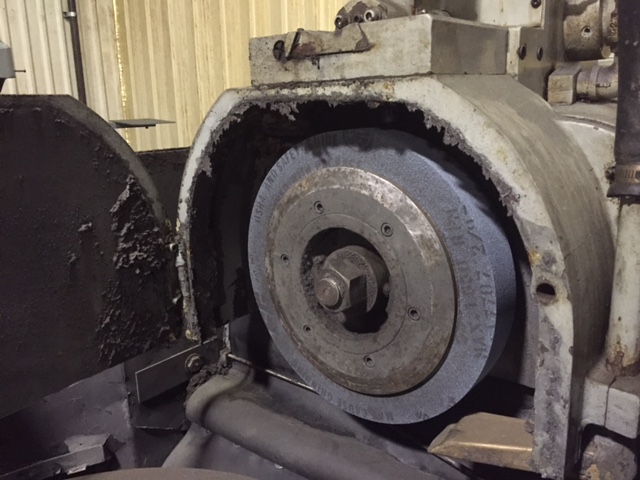

STANDARD WHEEL SIZE .................. 16" X 2" X 8" HOLE
WORK HEIGHT .......................... 10" MAXIMUM
MAXIMUM ANGLE, CONCAVE AND CONVEX .... 10 DEGREES
TABLE SPEEDS, VARIABLE................ 37 TO 155 RPM
WHEELHEAD STROKE...................... 15" MAXIMUM
VERTICAL TRAVEL, KNEE ................ 12" MAXIMUM
POWER FEED ADJUSTMENTS ............... .0001" TO .0015"
NEUTROFIER MAGNETIC CHUCK CONTROL .... YES
SPLASH GUARDS ........................ YES
LUBE SYSTEM .......................... AUTOMATIC
SPINDLE DRIVE MOTOR .................. 20 HP
HYDRAULIC SYSTEM DRIVE ............... 10 HP
