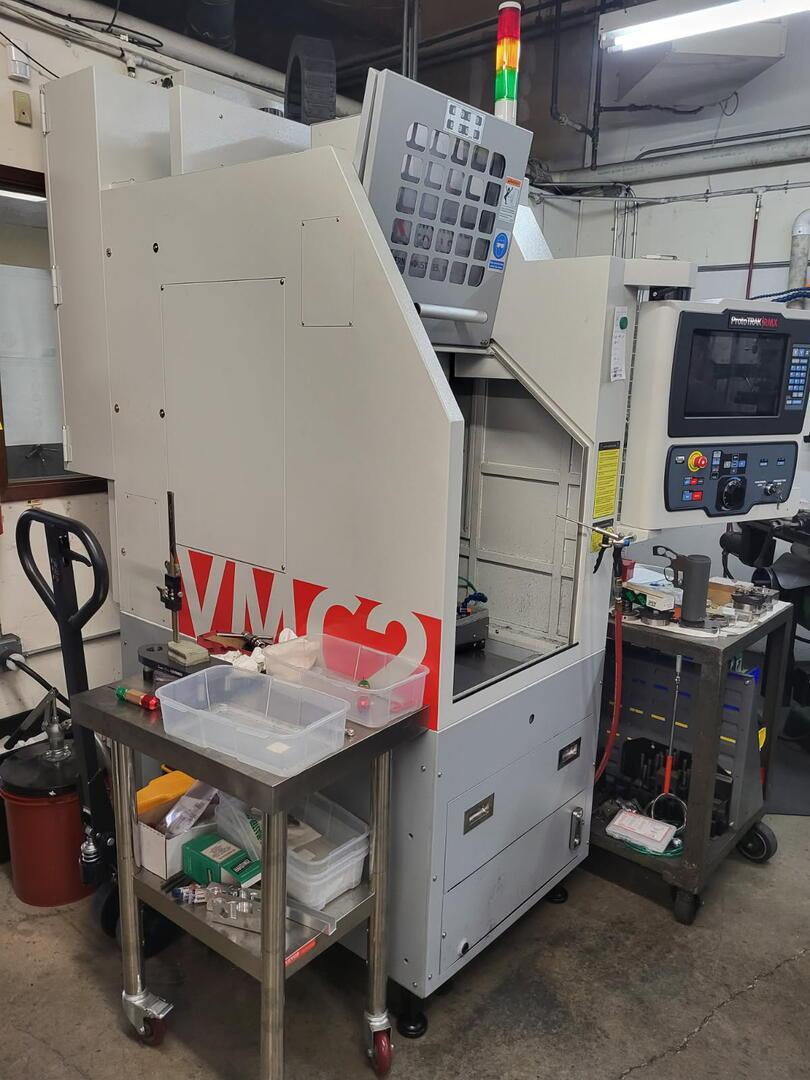

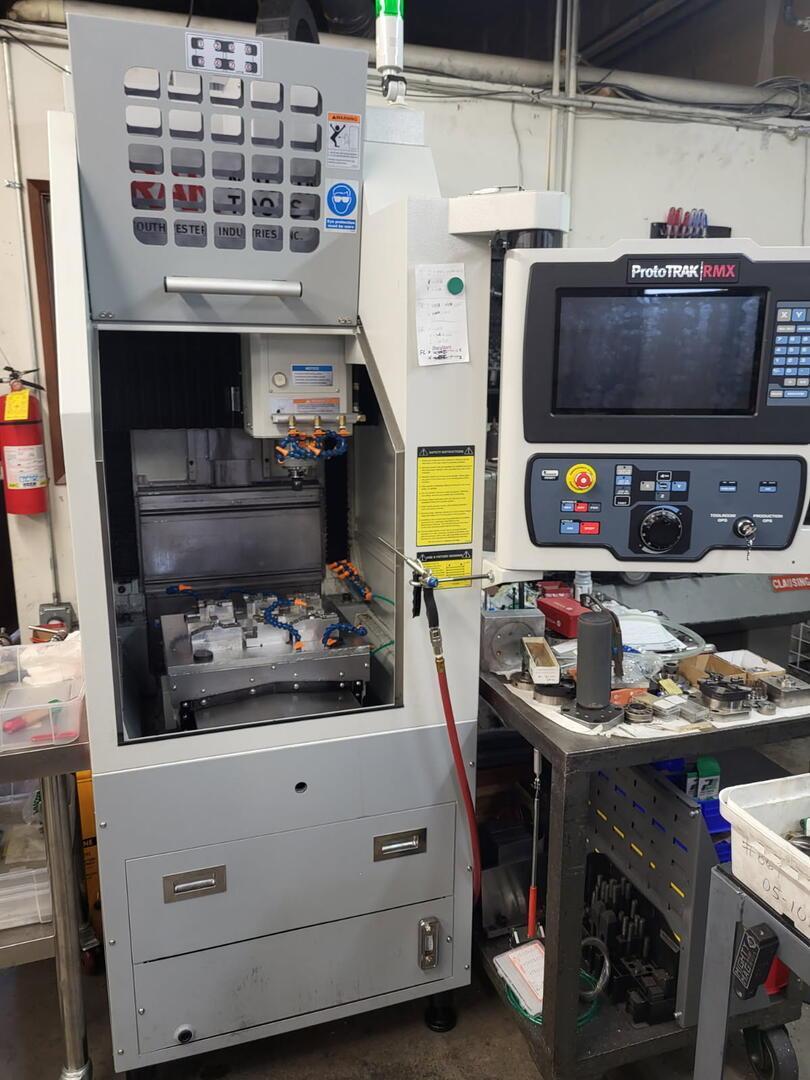

Model
Trak VMC 2
Year
2024
Stock #
104310
Condition
Not specified
Files
| CNC Control | yes |
| Table size | 18″ x 15″ |
|---|---|
| T-slots (number x width x pitch) | 4 x 0.629″ x 2.480″ (4 x 16 mm x 63 mm) |
| Travel (X, Y, Z axis) with soft limits | 14″ x 12″ x 17″ |
| Rapid traverse X, Y, Z | 400 IPM in Toolroom Ops 600 IPM in Production Ops |
| Spindle taper | 30 Taper |
| Spindle speed range - Production Ops | 50 - 10,000 RPM |
| Spindle speed range - Toolroom Ops | 50 - 5,000 RPM |
| Spindle nose diameter | 2.2″ |
| Tool clamping force (90 psi) | 850 - 1,000 lbs |
| Tool holder type | BT 30 |
| ATC tool capacity | 8 |
| Maximum tool weight (incl. holder) | 8 lbs |
| Maximum tool diameter | 2″ |
| Tool carrier speed | 1.2 - 1.4 sec from front to back |
| Tool selection system | Shortest path |
| Spindle motor HP - peak | 4.5 HP |
| Spindle motor HP - continuous | 3 HP |
| Power requirements | 208V (208-240V is acceptable), 3P, 30A 480V with transformer options (440-520V is acceptable), 3P, 15A |
| Maximum weight of workpiece | 500 lbs |
| Height of table from bottom of bed*** | 34″ |
| Min. spindle nose to table distance **** | 2.75″ |
| Max. spindle nose to table distance **** | 20.25″ |
| Spindle center to spindle head casting face | 15.7″ |
| Min. machine height *** | 93″ |
| Min. machine height to fit through doorway ** | 93″ |
| Max. machine height (head all the way up) *** | 101.5″ |
| Length (pendant enclosure rotated at 90°) | 88.25″ |
| Overall length of machine with electrical cabinet fully open 180° and pendant enclosure rotated 90° | 113.5″ |
| Footprint of machine (width x length) | 30.5″ x 52″ |
| Weight net / shipping (lbs) | 2,825 / 3,175 |
| Coolant capacity | 15 gal |
| Coolant pump power | 1/4 HP |
| Air - CFM (at 90 psi), SCFM | 2.5 CFM, 18 SCFM |
| Air quality | Air dried/water separator upstream of VMC |
| Lubrication pump capacity | 2 liter |
